CO2 Laser Marking and Cutting Systems for Industrial Production
EvermarkUSA operates and supplies industrial CO₂ laser systems configured for production-floor marking, cutting, and engraving of non-metallic materials — phenolic, acrylic, wood, MDF, leather, rubber, and two-color laminate. Three production bed sizes serve light-production sign shops through full-sheet industrial fabrication: 1390, 1610, and 1325. Every system is configured, tested, and supported by a team that runs CO₂ production daily.
CO2 Laser System Bed Sizes — Production Configurations
Select a bed size based on your largest workpiece, production volume, and material sheet size. All three configurations use industrial CO₂ laser tubes, servo or stepper drive systems, and DSP controllers compatible with LightBurn and RDWorks.
CO2 Laser Systems — Large Format

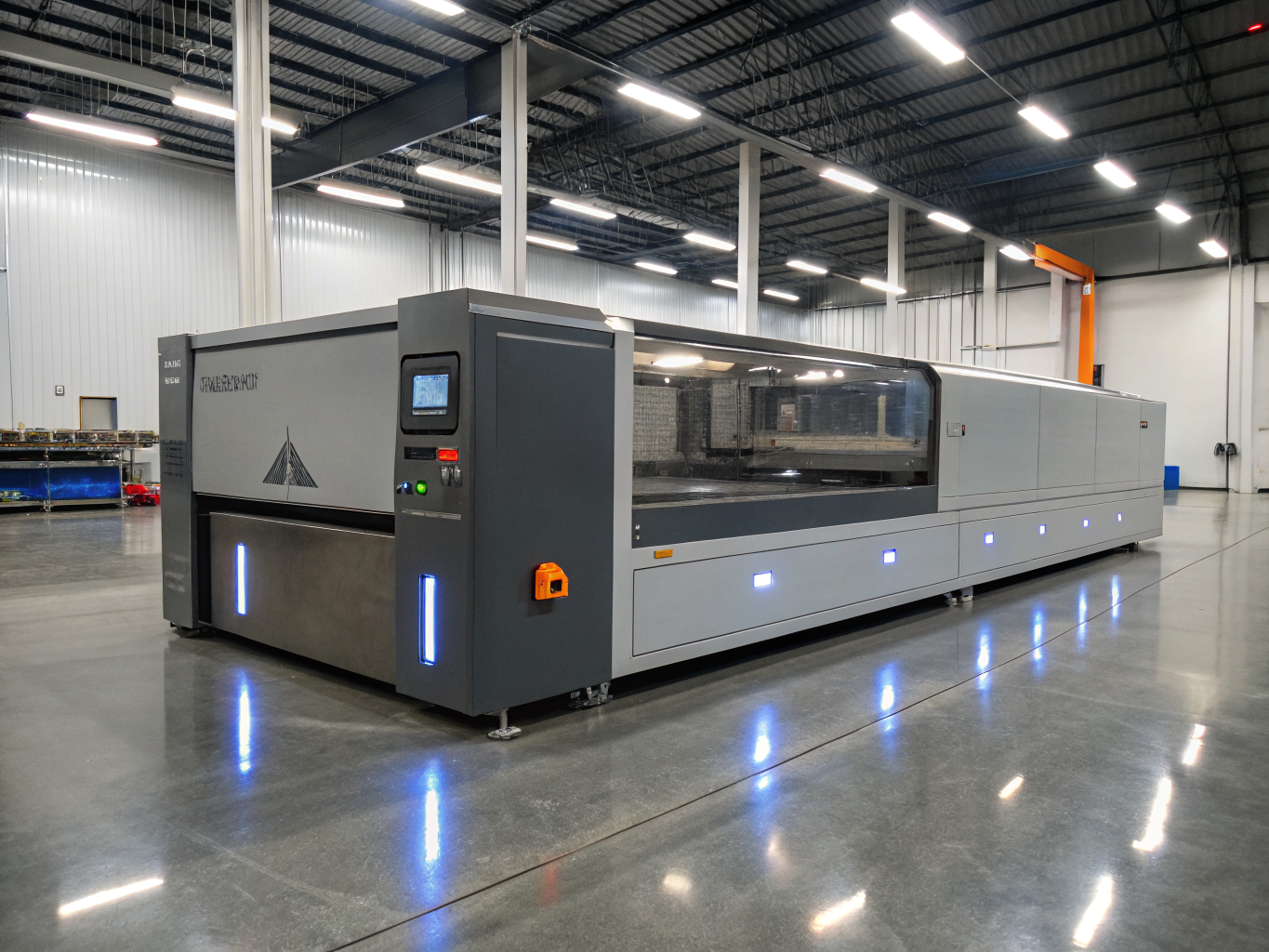

The 1610 (1600×1000mm) steps up to a 63"×39" work area for operations cutting oversized panels, wide-format sign stock, or running high-volume production where material utilization matters. Servo-driven for higher positioning accuracy and repeatability across long production runs.
- Work area: 1600×1000mm (63"×39")
- Power: 100W CO₂
- Max cut depth: Acrylic 15mm / MDF 12mm
- Drive: Servo motors
- Cooling: Water-cooled — CW-5200
- Work area: 1600×1000mm (63"×39")
- Power: 130W CO₂
- Max cut depth: Acrylic 22mm / MDF 20mm
- Drive: Servo motors
- Cooling: Water-cooled — CW-5200

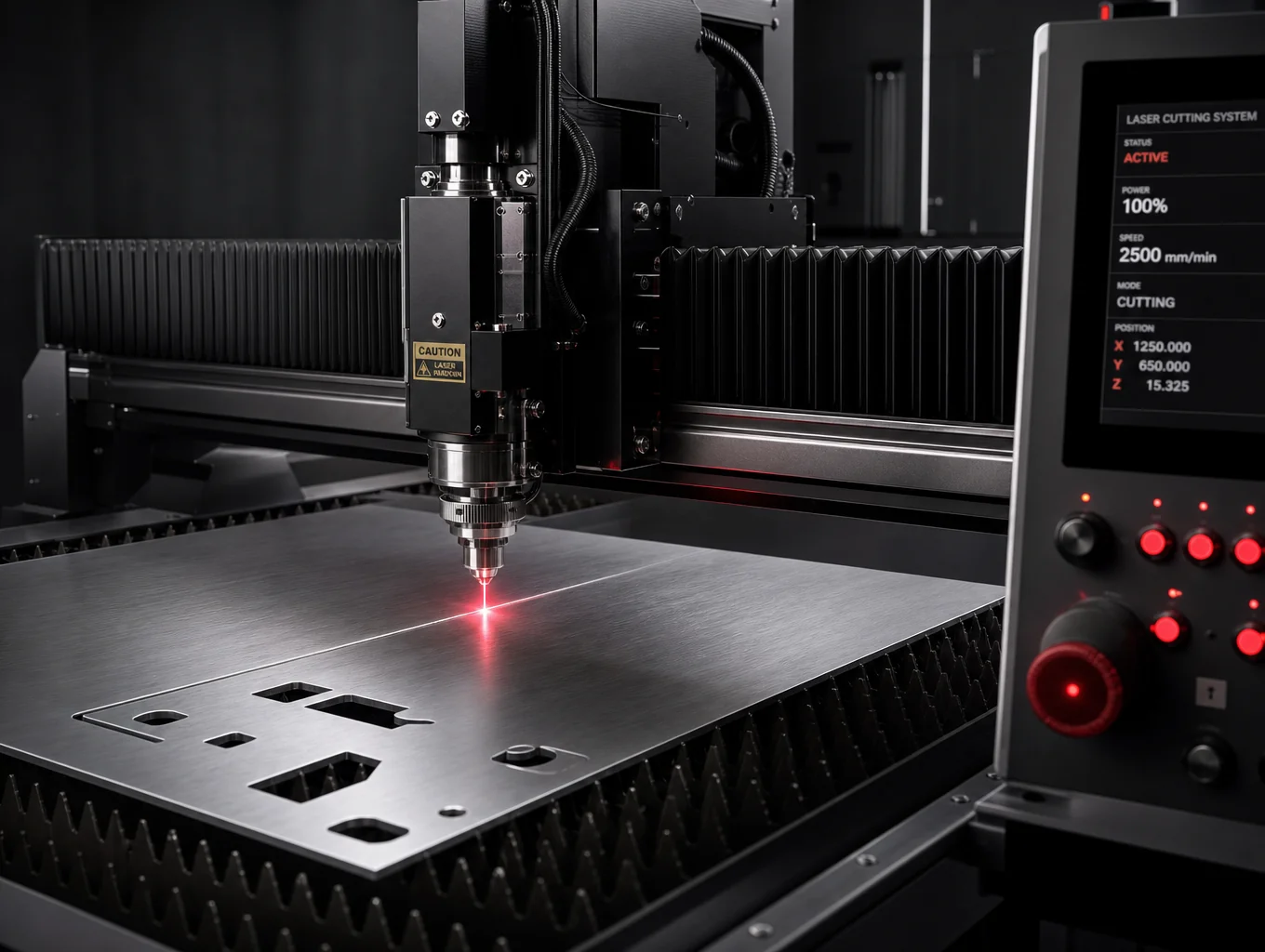

- Work area: 1600×1000mm (63"×39")
- Power: 180W CO₂
- Max cut depth: Acrylic 25mm / MDF 22mm
- Drive: Servo motors
- Cooling: Water-cooled — CW-5200
What CO2 Laser Systems Cut and Engrave
CO₂ laser energy at 10,600nm is absorbed by organic and non-metallic materials. All three EvermarkUSA CO₂ system configurations cut and engrave the following material classes at the wattage specified per system.
Cut and Engrave
- Two-color phenolic and acrylic laminate—The production material for industrial nameplates, legend plates, and panel identification. CO₂ removes the cap layer to reveal the contrasting core — the standard process for engraved electrical identification to UL 508A §49.6.
- Cast and extruded acrylic—Flame-polished cut edges on cast acrylic. The primary material for sign fabrication. Cutting depth from 1/16" to 1/2" depending on system wattage.
- MDF and plywood—Sheet goods from 1/4" to 3/4" at production wattage. Cabinet components, sign blanks, and display fixtures.
- Hardwood—Engraving and cutting for custom wood products, signage, and decorative fabrication.
- Leather and faux leather—Precision cutting and engraving for custom goods, apparel accessories, and OEM components.
- Rubber—Stamp blanks, gasket cutting, and custom rubber components.
- Fabric and technical textiles—Precision cutting without fraying for apparel, sportswear, and industrial textile applications.
- Foam (EVA, polyethylene)—Custom inserts, protective packaging, and display components.
Surface Engrave (Not Cut)
- Anodized aluminum—CO₂ ablates the anodized layer to produce permanent white-on-black marks. Used for asset tags, equipment ID plates, and rack labels.
- Powder-coated and painted steel—Surface ablation reveals base metal for permanent identification on coated equipment.
- Glass and ceramic tile—Surface etching for architectural signage and decorative applications.
Metal cutting and deep metal marking requires a fiber laser system.
Why Source a CO2 Laser System from EvermarkUSA
Recommended by a production facility, not a reseller.
EvermarkUSA is operated by the team behind Evermark Industrial Solutions — a production laser marking facility running CO₂, Fiber, and UV systems daily. Every system in our catalog is one we have evaluated against real production requirements, not sourced from a dropship catalog.
Configured for your application.
We match system size, wattage, and configuration to your material and production volume before the order is placed. There is no one-size-fits-all recommendation here.
US-based technical support.
Setup documentation, commissioning support, and parts sourcing handled domestically. No overseas-only support queues.
Veteran-owned operation, zero-failure standard.
Every system EvermarkUSA supplies is held to the standard we apply in our own production facility — because our name goes on every order that ships through it.
